Data Visualization with ggplot2

Last updated on 2025-09-05 | Edit this page

Overview

Questions

What is ggplot2?
What is mapping, and what is aesthetics?
What is the process of creating a publication-quality plots with ggplot in R?

Objectives

Describe the role of data, aesthetics, and geoms in ggplot functions.
Choose the correct aesthetics and alter the geom parameters for a scatter plot, histogram, or box plot.
Layer multiple geometries in a single plot.
Customize plot scales, titles, themes, and fonts.
Apply a facet to a plot.
Apply additional ggplot2-compatible plotting libraries.
Save a ggplot to a file.
List several resources for getting help with ggplot.
List several resources for creating informative scientific plots.

Prerequisite

Reminder

At this point you should be coding along in the “genomics_r_plotting.R” script we created in the last episode. Writing your commands in the script (and commenting it) will make it easier to record what you did and why.

Introduction to `ggplot2`

ggplot2 is a plotting package, part of the tidyverse, that makes it simple to create complex plots from data in a data frame. It provides a more programmatic interface for specifying what variables to plot, how they are displayed, and general visual properties. Therefore, we only need minimal changes if the underlying data change or if we decide to change from a bar plot to a scatter plot. This helps in creating publication-quality plots with minimal amounts of adjustments and tweaking.

The gg in “ggplot” stands for “Grammar of Graphics,” which is an elegant yet powerful way to describe the making of scientific plots. In short, the grammar of graphics breaks down every plot into a few components, namely, a dataset, a set of geoms (visual marks that represent the data points), and a coordinate system. You can imagine this is a grammar that gives unique names to each component appearing in a plot and conveys specific information about data. With ggplot, graphics are built step by step by adding new elements.

The idea of mapping is crucial in ggplot. One familiar example is to map the value of one variable in a dataset to \(x\) and the other to \(y\). However, we often encounter datasets that include multiple (more than two) variables. In this case, ggplot allows you to map those other variables to visual marks such as color and shape (aesthetics or aes). One thing you may want to remember is the difference between discrete and continuous variables. Some aesthetics, such as the shape of dots, do not accept continuous variables. If forced to do so, R will give an error. This is easy to understand; we cannot create a continuum of shapes for a variable, unlike, say, color.

Tip: when having doubts about whether a variable is continuous or discrete, a quick way to check is to use the summary() function. Continuous variables have descriptive statistics but not the discrete variables.

Installing and loading `ggplot`

In your “genomics_r"genomics_r_basics.R”.R” script type the following code to load the ggplot2 package.

R

library(ggplot2)

Next, run this line of code in your script. You can run a line of code by hitting the Run button that is just above the first line of your script in the header of the Source pane or you can use the appropriate shortcut:

Windows execution shortcut: Ctrl+Enter
Mac execution shortcut: Cmd(⌘)+Enter

What do you see as an output in the Console? Do you see an error that reads Error in library(ggplot2) : there is no package called ‘ggplot2’? If so, this means you don’t have this external third-party library installed. We’ll talk later about external libraries, but for now we’ll just focus on having it installed to use it.

If you got the error, type the following code in the Console to install the ggplot2 package.

R

install.packages("ggplot2")

Loading the dataset

R

variants <- read.csv("https://www.tinyurl.com/r-sddrc-data")

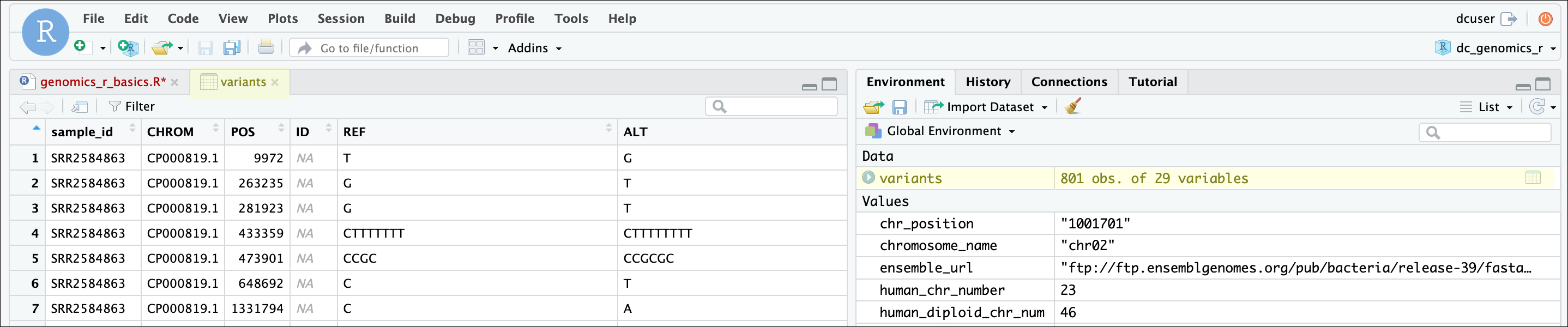

One of the first things you should notice is that in the Environment window, you have the variants object, listed as 801 obs. (observations/rows) of 29 variables (columns). Double-clicking on the name of the object will open a view of the data in a new tab.

Where to find the data frame View option

Explore the structure (types of columns and number of rows) of the dataset using the str() function.

R

str(variants) # Show the structure of the data

OUTPUT

'data.frame':	801 obs. of  29 variables:
 $ sample_id    : chr  "SRR2584863" "SRR2584863" "SRR2584863" "SRR2584863" ...
 $ CHROM        : chr  "CP000819.1" "CP000819.1" "CP000819.1" "CP000819.1" ...
 $ POS          : int  9972 263235 281923 433359 473901 648692 1331794 1733343 2103887 2333538 ...
 $ ID           : logi  NA NA NA NA NA NA ...
 $ REF          : chr  "T" "G" "G" "CTTTTTTT" ...
 $ ALT          : chr  "G" "T" "T" "CTTTTTTTT" ...
 $ QUAL         : num  91 85 217 64 228 210 178 225 56 167 ...
 $ FILTER       : logi  NA NA NA NA NA NA ...
 $ INDEL        : logi  FALSE FALSE FALSE TRUE TRUE FALSE ...
 $ IDV          : int  NA NA NA 12 9 NA NA NA 2 7 ...
 $ IMF          : num  NA NA NA 1 0.9 ...
 $ DP           : int  4 6 10 12 10 10 8 11 3 7 ...
 $ VDB          : num  0.0257 0.0961 0.7741 0.4777 0.6595 ...
 $ RPB          : num  NA 1 NA NA NA NA NA NA NA NA ...
 $ MQB          : num  NA 1 NA NA NA NA NA NA NA NA ...
 $ BQB          : num  NA 1 NA NA NA NA NA NA NA NA ...
 $ MQSB         : num  NA NA 0.975 1 0.916 ...
 $ SGB          : num  -0.556 -0.591 -0.662 -0.676 -0.662 ...
 $ MQ0F         : num  0 0.167 0 0 0 ...
 $ ICB          : logi  NA NA NA NA NA NA ...
 $ HOB          : logi  NA NA NA NA NA NA ...
 $ AC           : int  1 1 1 1 1 1 1 1 1 1 ...
 $ AN           : int  1 1 1 1 1 1 1 1 1 1 ...
 $ DP4          : chr  "0,0,0,4" "0,1,0,5" "0,0,4,5" "0,1,3,8" ...
 $ MQ           : int  60 33 60 60 60 60 60 60 60 60 ...
 $ Indiv        : chr  "/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam" "/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam" "/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam" "/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam" ...
 $ gt_PL        : chr  "121,0" "112,0" "247,0" "91,0" ...
 $ gt_GT        : int  1 1 1 1 1 1 1 1 1 1 ...
 $ gt_GT_alleles: chr  "G" "T" "T" "CTTTTTTTT" ...

To run multiple lines of code, you can highlight all the line you wish to run and then hit Run or use the shortcut key combo listed above.

Alternatively, we can display the first a few rows (vertically) of the table using head():

R

head(variants)

sample_id	CHROM	POS	ID	REF	ALT	QUAL	FILTER	INDEL	IDV	IMF	DP	VDB	RPB	MQB	BQB	MQSB	SGB	MQ0F	ICB	HOB	AC	AN	DP4	MQ	Indiv	gt_PL	gt_GT	gt_GT_alleles
SRR2584863	CP000819.1	9972	NA	T	G	91	NA	FALSE	NA	NA	4	0.0257451	NA	NA	NA	NA	-0.556411	0.000000	NA	NA	1	1	0,0,0,4	60	/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam	121,0	1	G
SRR2584863	CP000819.1	263235	NA	G	T	85	NA	FALSE	NA	NA	6	0.0961330	1	1	1	NA	-0.590765	0.166667	NA	NA	1	1	0,1,0,5	33	/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam	112,0	1	T
SRR2584863	CP000819.1	281923	NA	G	T	217	NA	FALSE	NA	NA	10	0.7740830	NA	NA	NA	0.974597	-0.662043	0.000000	NA	NA	1	1	0,0,4,5	60	/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam	247,0	1	T
SRR2584863	CP000819.1	433359	NA	CTTTTTTT	CTTTTTTTT	64	NA	TRUE	12	1.0	12	0.4777040	NA	NA	NA	1.000000	-0.676189	0.000000	NA	NA	1	1	0,1,3,8	60	/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam	91,0	1	CTTTTTTTT
SRR2584863	CP000819.1	473901	NA	CCGC	CCGCGC	228	NA	TRUE	9	0.9	10	0.6595050	NA	NA	NA	0.916482	-0.662043	0.000000	NA	NA	1	1	1,0,2,7	60	/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam	255,0	1	CCGCGC
SRR2584863	CP000819.1	648692	NA	C	T	210	NA	FALSE	NA	NA	10	0.2680140	NA	NA	NA	0.916482	-0.670168	0.000000	NA	NA	1	1	0,0,7,3	60	/home/dcuser/dc_workshop/results/bam/SRR2584863.aligned.sorted.bam	240,0	1	T

We can also see view our data in a nicely formatted window using the View() function, which opens a new tab in our Source pane. This will have the same result as clicking the name of our dataset in the Environment pane.

R

View(variants)

ggplot2 functions like data in the long format, i.e., a column for every dimension (variable), and a row for every observation. Well-structured data will save you time when making figures with ggplot2

ggplot2 graphics are built step-by-step by adding new elements. Adding layers in this fashion allows for extensive flexibility and customization of plots, and more equally important the readability of the code.

To build a ggplot, we will use the following basic template that can be used for different types of plots:

R

ggplot(data = <DATA>, mapping = aes(<MAPPINGS>)) +  <GEOM_FUNCTION>()

use the ggplot() function and bind the plot to a specific data frame using the data argument

R

ggplot(data = variants)

define a mapping (using the aesthetic (aes) function), by selecting the variables to be plotted and specifying how to present them in the graph, e.g. as x and y positions or characteristics such as size, shape, color, etc.

R

ggplot(data = variants, aes(x = DP, y = QUAL))

add ‘geoms’ – graphical representations of the data in the plot (points, lines, bars). ggplot2 offers many different geoms; we will use some common ones today, including:
- geom_point() for scatter plots, dot plots, etc.
- geom_boxplot() for, well, boxplots!
- geom_line() for trend lines, time series, etc.

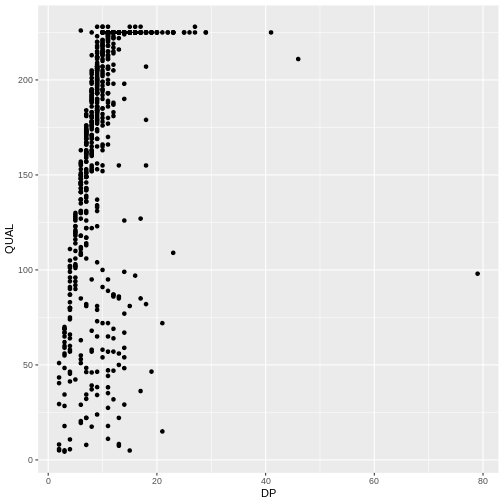

To add a geom to the plot use the + operator. Because we have two continuous variables, let’s use geom_point() (i.e., a scatter plot) first:

R

ggplot(data = variants, aes(x = DP, y = QUAL)) +
  geom_point()

The + in the ggplot2 package is particularly useful because it allows you to modify existing ggplot objects. This means you can easily set up plot templates and conveniently explore different types of plots, so the above plot can also be generated with code like this:

R

# Assign plot to a variable
coverage_plot <- ggplot(data = variants, aes(x = DP, y = QUAL))

# Draw the plot
coverage_plot +
  geom_point()

Notes

Anything you put in the ggplot() function can be seen by any geom layers that you add (i.e., these are universal plot settings). This includes the x- and y-axis mapping you set up in aes().
You can also specify mappings for a given geom independently of the mappings defined globally in the ggplot() function.
The + sign used to add new layers must be placed at the end of the line containing the previous layer. If, instead, the + sign is added at the beginning of the line containing the new layer, ggplot2 will not add the new layer and will return an error message.

R

# This is the correct syntax for adding layers
coverage_plot +
  geom_point()

# This will not add the new layer and will return an error message
coverage_plot
  + geom_point()

Building your plots iteratively

Building plots with ggplot2 is typically an iterative process. We start by defining the dataset we’ll use, lay out the axes, and choose a geom:

R

ggplot(data = variants, aes(x = DP, y = QUAL)) +
  geom_point()

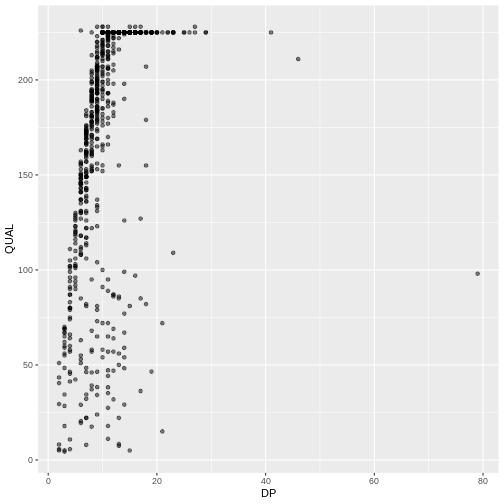

Then, we start modifying this plot to extract more information from it. For instance, we can add transparency (alpha) to avoid over-plotting:

R

ggplot(data = variants, aes(x = DP, y = QUAL)) +
  geom_point(alpha = 0.5)

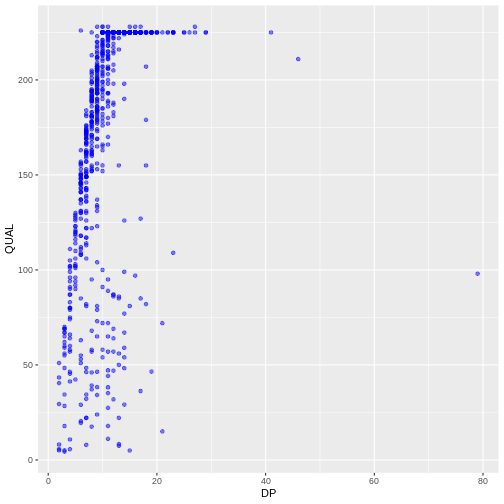

We can also add colors for all the points:

R

ggplot(data = variants, aes(x = DP, y = QUAL)) +
  geom_point(alpha = 0.5, color = "blue")

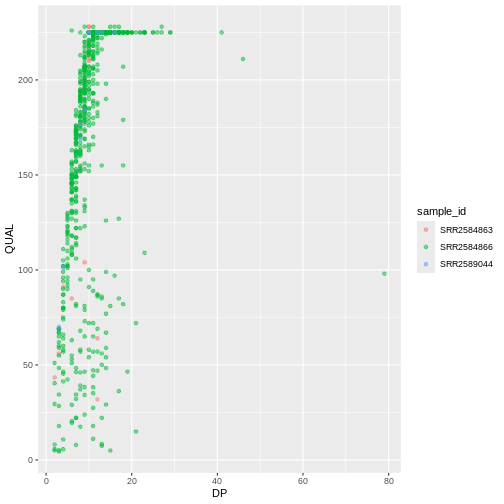

Or to color each species in the plot differently, you could use a vector as an input to the argument color. ggplot2 will provide a different color corresponding to different values in the vector. Here is an example where we color with sample_id:

R

ggplot(data = variants, aes(x = DP, y = QUAL, color = sample_id)) +
  geom_point(alpha = 0.5)

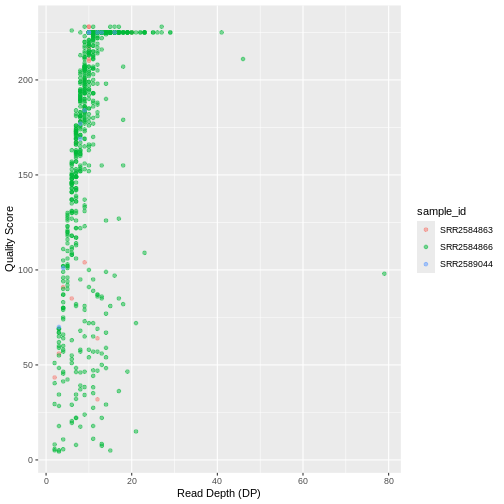

To make our plot more readable, we can add axis labels:

R

ggplot(data = variants, aes(x = DP, y = QUAL, color = sample_id)) +
  geom_point(alpha = 0.5) +
  labs(x = "Read Depth (DP)",
       y = "Quality Score")

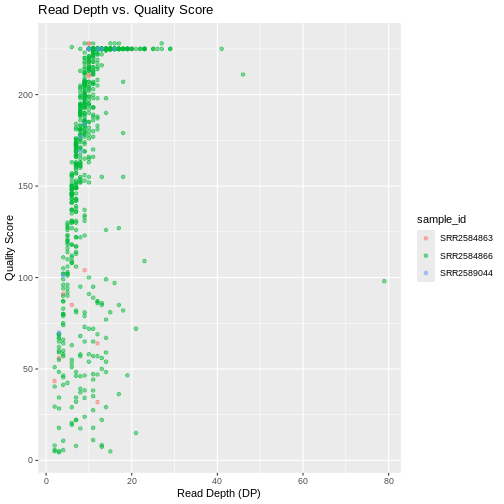

To add a main title to the plot, we use the title argument for the labs() function:

R

ggplot(data = variants, aes(x = DP, y = QUAL, color = sample_id)) +
  geom_point(alpha = 0.5) +
  labs(x = "Read Depth (DP)",
       y = "Quality Score",
       title = "Read Depth vs. Quality Score")

Now the figure is complete and ready to be exported and saved to a file. This can be achieved easily using ggsave(), which can write, by default, the most recent generated figure into different formats (e.g., jpeg, png, pdf) according to the file extension. So, for example, to create a pdf version of the above figure with a dimension of \(6\times4\) inches:

R

ggsave("depth_quality.pdf", width = 6, height = 4)

If we check the current working directory, there should be a newly created file called depth.pdf with the above plot.

Challenge

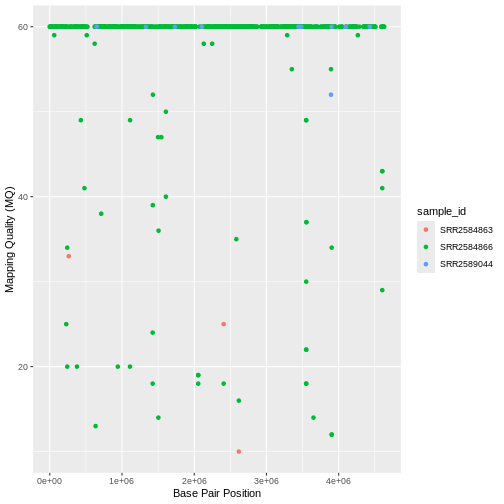

Use what you just learned to create a scatter plot of mapping quality (MQ) over position (POS) with the samples showing in different colors. Make sure to give your plot relevant axis labels.

Show me the solution

R

 ggplot(data = variants, aes(x = POS, y = MQ, color = sample_id)) +
  geom_point() +
  labs(x = "Base Pair Position",
       y = "Mapping Quality (MQ)")

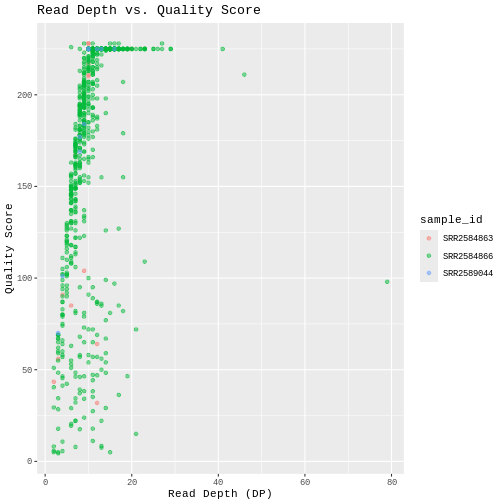

To further customize the plot, we can change the default font format:

R

ggplot(data = variants, aes(x = DP, y = QUAL, color = sample_id)) +
  geom_point(alpha = 0.5) +
  labs(x = "Read Depth (DP)",
       y = "Quality Score",
       title = "Read Depth vs. Quality Score") +
  theme(text = element_text(family = "mono"))

Faceting

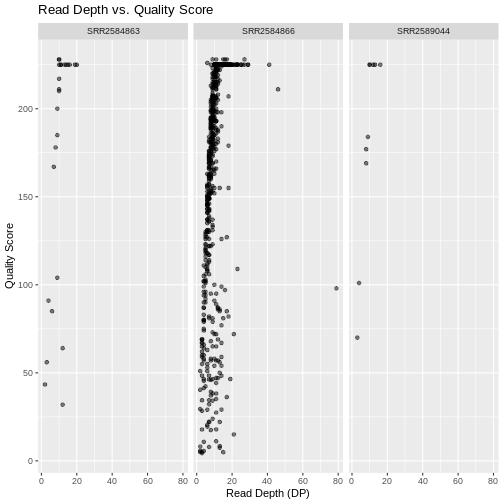

ggplot2 has a special technique called faceting that allows the user to split one plot into multiple plots (panels) based on a factor (variable) included in the dataset. We will use it to split our mapping quality plot into three panels, one for each sample.

R

ggplot(data = variants, aes(x = DP, y = QUAL)) +
  geom_point(alpha = 0.5) +
  labs(x = "Read Depth (DP)",
       y = "Quality Score",
       title = "Read Depth vs. Quality Score") +
 facet_grid(~ sample_id)

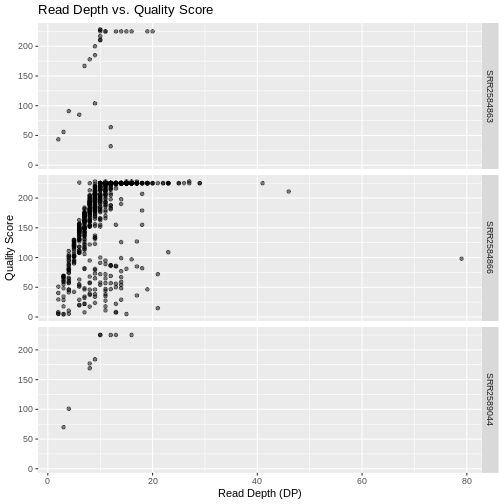

This looks okay, but it would be easier to read if the plot facets were stacked vertically rather than horizontally. The facet_grid geometry allows you to explicitly specify how you want your plots to be arranged via formula notation (rows ~ columns; the dot (.) indicates every other variable in the data i.e., no faceting on that side of the formula).

R

ggplot(data = variants, aes(x = DP, y = QUAL)) +
  geom_point(alpha = 0.5) +
  labs(x = "Read Depth (DP)",
       y = "Quality Score",
       title = "Read Depth vs. Quality Score") +
 facet_grid(sample_id ~ .)

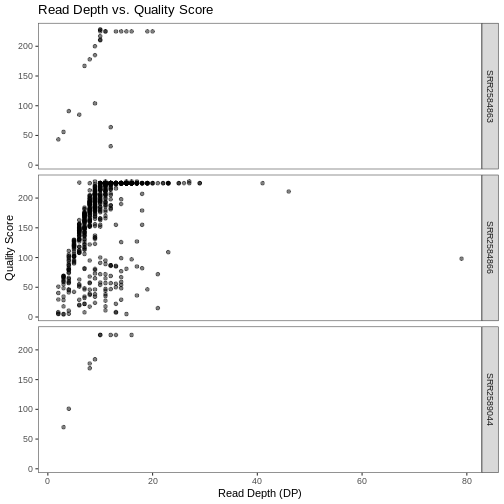

Usually plots with white background look more readable when printed. We can set the background to white using the function theme_bw(). Additionally, you can remove the grid:

R

ggplot(data = variants, aes(x = DP, y = QUAL)) +
  geom_point(alpha = 0.5) +
  labs(x = "Read Depth (DP)",
       y = "Quality Score",
       title = "Read Depth vs. Quality Score") +
  facet_grid(sample_id ~ .) +
  theme_bw() +
  theme(panel.grid = element_blank())

Challenge

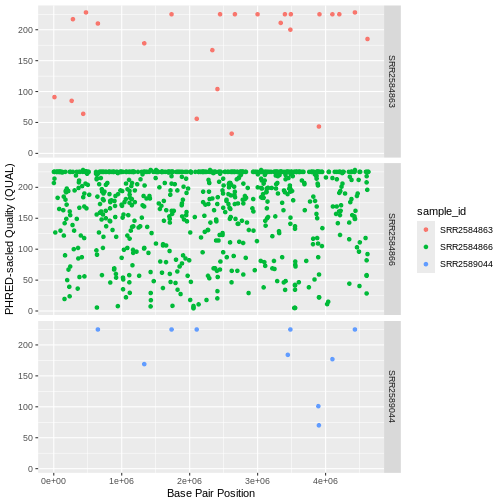

Use what you just learned to create a scatter plot of PHRED scaled quality (QUAL) over position (POS) with the samples showing in different facets. Make sure to give your plot relevant axis labels.

Show me the solution

R

 ggplot(data = variants, aes(x = POS, y = QUAL, color = sample_id)) +
  geom_point() +
  labs(x = "Base Pair Position",
       y = "PHRED-sacled Quality (QUAL)") +
  facet_grid(sample_id ~ .)

Barplots

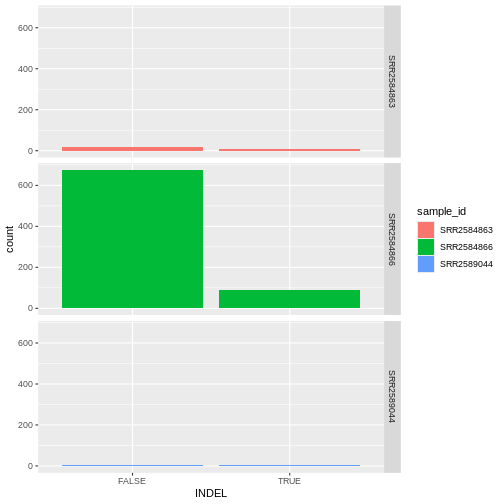

We can create barplots using the geom_bar geom. Let’s make a barplot showing the number of variants for each sample that are indels.

R

ggplot(data = variants, aes(x = INDEL, fill = sample_id)) +
  geom_bar() +
  facet_grid(sample_id ~ .)

Challenge

From the previus plot, we realize we don’t need the legend since we already have the sample_id labels on the individual plot facets. Use the help file for geom_bar and any other online resources you want to use to remove the legend from the plot.

Show me the solution

R

ggplot(data = variants, aes(x = INDEL, color = sample_id)) +
   geom_bar(show.legend = F) +
   facet_grid(sample_id ~ .)

Density

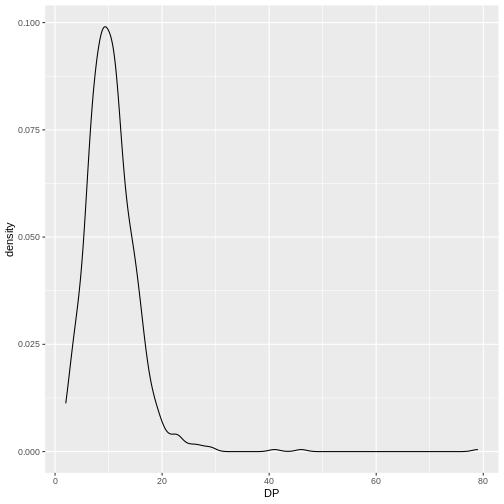

We can create density plots using the geom_density geom that shows the distribution of of a variable in the dataset. Let’s plot the distribution of QUAL

R

ggplot(data = variants, aes(x = DP)) +
  geom_density()

This plot tells us that the most of frequent DP (read depth) for the variants is about 10 reads.

Challenge

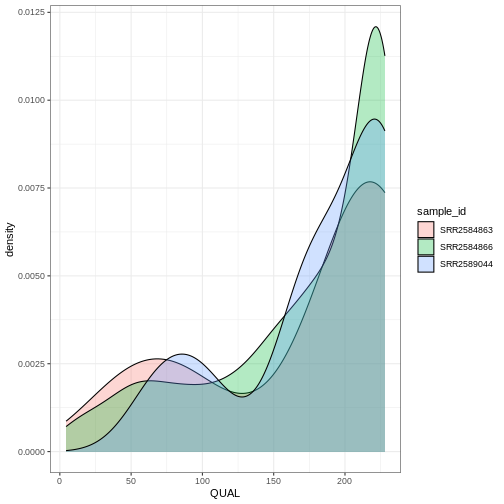

Use geom_density to plot the distribution of QUAL with a different fill for each sample. Use a white background for the plot.

Show me the solution

R

ggplot(data = variants, aes(x = QUAL, fill = sample_id)) +
   geom_density(alpha = 0.3) +
   theme_bw()

`ggplot2` themes

In addition to theme_bw(), which changes the plot background to white, ggplot2 comes with several other themes which can be useful to quickly change the look of your visualization. The complete list of themes is available at https://ggplot2.tidyverse.org/reference/ggtheme.html. theme_minimal() and theme_light() are popular, and theme_void() can be useful as a starting point to create a new hand-crafted theme.

The ggthemes package provides a wide variety of options (including Microsoft Excel, old and new). The ggplot2 extensions website provides a list of packages that extend the capabilities of ggplot2, including additional themes.

Discussion

Challenge

With all of this information in hand, please take another five minutes to either improve one of the plots generated in this exercise or create a beautiful graph of your own. Use the RStudio ggplot2 cheat sheet for inspiration. Here are some ideas:

See if you can change the size or shape of the plotting symbol.
Can you find a way to change the name of the legend? What about its labels?
Try using a different color palette (see the Cookbook for R).

More `ggplot2` Plots

ggplot2 offers many more informative and beautiful plots (geoms) of interest for biologists (although not covered in this lesson) that are worth exploring, such as

geom_tile(), for heatmaps,
geom_jitter(), for strip charts, and
geom_violin(), for violin plots

Resources

Key Points

ggplot2 is a powerful tool for high-quality plots
ggplot2 provides a flexible and readable grammar to build plots
